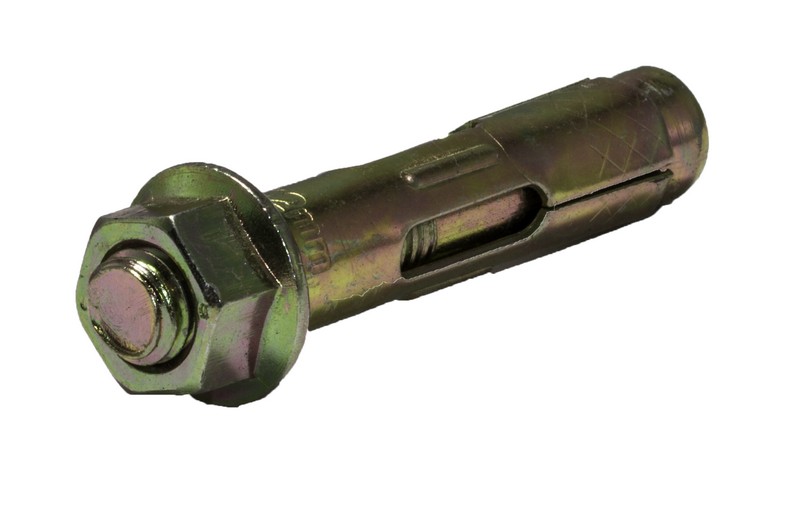

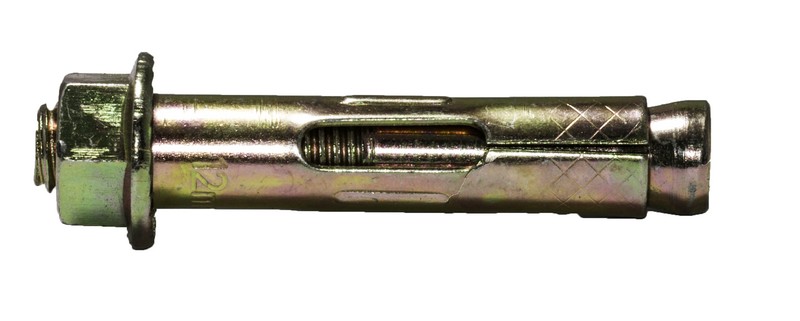

Hexagon Head - Class 5.8 - Zinc Yellow

Part No.	Size mm	Drill Size mm	Anchor Length mm	Fasten Material Up to	Min. Hole Depth	Box Qty.	Quantity
DB06036	6.5 x 36	6.5	36	6mm	30mm	100	- +
DB06056	6.5 x 56		56	26mm	30mm	100	- +
DB06075	6.5 x 75		75	45mm	30mm	100	- +
DB08040	8 x 40	8	40	5mm	35mm	100	- +
DB08065	8 x 65		65	30mm	35mm	50	- +
DB08085	8 x 85		85	50mm	35mm	50	- +
DB10040	10 x 40	10	40	5mm	35mm	50	- +
DB10050	10 x 50		50	10mm	40mm	50	- +
DB10060	10 x 60		60	20mm	40mm	50	- +
DB10077	10 x 77		77	37mm	40mm	50	- +
DB10097	10 x 97		97	57mm	40mm	50	- +
DB10125	10 x 125		125	85mm	40mm	50	- +
DB12060	12 x 60	12	60	10mm	50mm	50	- +
DB12075	12 x 75		75	25mm	50mm	50	- +
DB12099	12 x 99		99	47mm	50mm	25	- +
DB12129	12 x 129		129	79mm	50mm	25	- +
DB16065	16 x 65	16	65	10mm	55mm	25	- +
DB16111	16 x 111		111	55mm	55mm	10	- +
DB16147	16 x 147		147	92mm	55mm	10	- +
DB20075	20 x 75	20	75	15mm	60mm	10	- +
DB20107	20 x 107		107	45mm	60mm	5	- +
DB20151	20 x 151		151	90mm	60mm	5	- +
