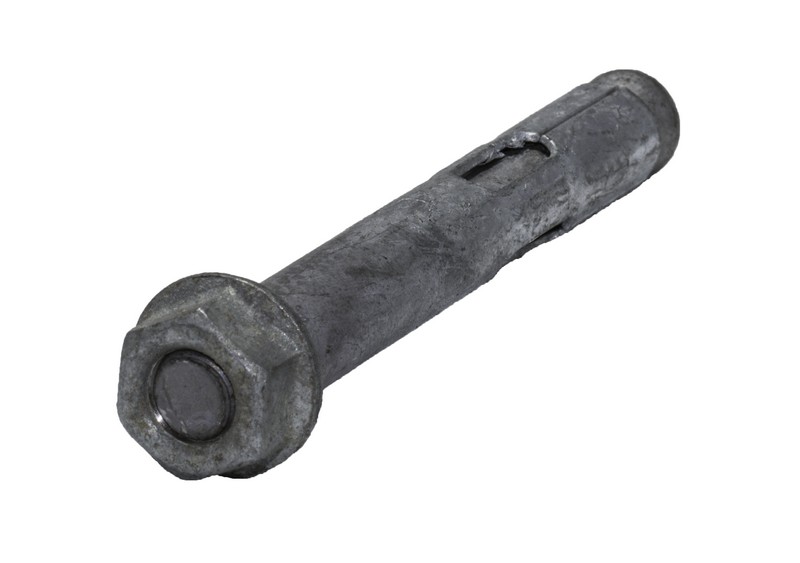

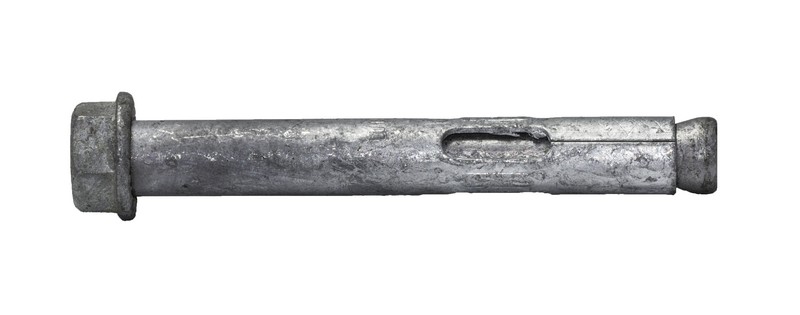

Hexagon Head - Class 5.8 - Galvanised
Home Construction Fasteners Sleeve AnchorsHexagon Head - Class 5.8 - Galvanised
Home - Construction Fasteners - Sleeve AnchorsHexagon Head - Class 5.8 - Galvanised

Hexagon Head - Class 5.8 - Galvanised

Part No. Size mm Drill Size mm Anchor Length mm Fasten Material Up to Min. Hole Depth Box Qty. Quantity
DB08040G 8 x 40 8 40 5mm 35mm 100
- +
DB08065G 8 x 65 65 30mm 35mm 50
- +
DB08085G 8 x 85 85 50mm 35mm 50
- +
DB10040G 10 x 40 10 40 5mm 35mm 50
- +
DB10050G 10 x 50 50 10mm 40mm 50
- +
DB10060G 10 x 60 60 20mm 40mm 50
- +
DB10077G 10 x 77 77 37mm 40mm 50
- +
DB10097G 10 x 97 97 57mm 40mm 50
- +
DB10125G 10 x 125 125 85mm 40mm 50
- +
DB12060G 12 x 60 12 60 10mm 50mm 50
- +
DB12075G 12 x 75 75 25mm 50mm 50
- +
DB12099G 12 x 99 99 47mm 50mm 25
- +
DB12129G 12 x 129 129 79mm 50mm 25
- +
DB16065G 16 x 65 16 65 10mm 55mm 25
- +
DB16111G 16 x 111 111 55mm 55mm 10
- +
DB16147G 16 x 147 147 92mm 55mm 10
- +
DB20075G 20 x 75 20 75 15mm 60mm 10
- +
DB20107G 20 x 107 107 45mm 60mm 5
- +
DB20151G 20 x 151 151 90mm 60mm 5
- +
