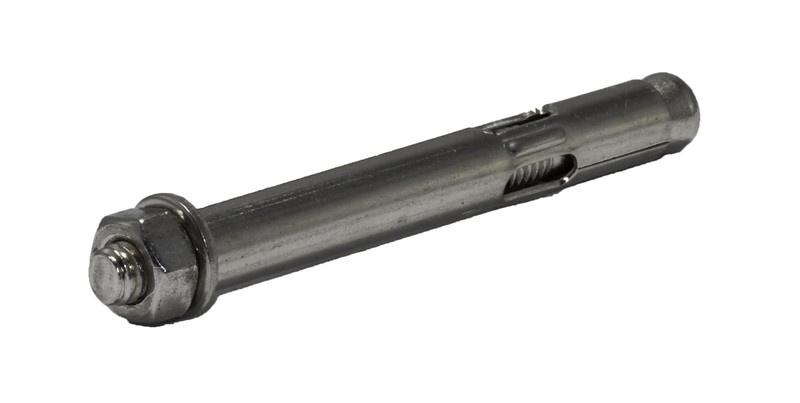

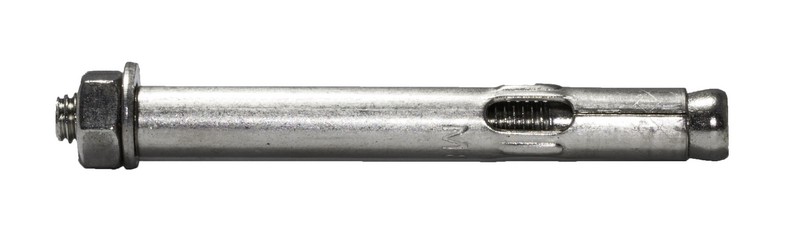

Hexagon Head - 316 Stainless Steel (316 SS)

Part No.	Size mm	Drill Size mm	Anchor Length mm	Fasten Material Up to	Min. Hole Depth	Box Qty.	Quantity
DB06036A4	6.5 x 36	6.5	36	6mm	30mm	100	- +
DB06056A4	6.5 x 56		56	26mm	30mm	100	- +
DB08040A4	8 x 40	8	40	5mm	35mm	100	- +
DB08065A4	8 x 65		65	30mm	35mm	50	- +
DB08085A4	8 x 85		85	50mm	35mm	50	- +
DB10050A4	10 x 50	10	50	10mm	40mm	50	- +
DB10077A4	10 x 77		77	37mm	40mm	50	- +
DB10097A4	10 x 97		97	57mm	40mm	50	- +
DB12060A4	12 x 60	12	60	10mm	50mm	50	- +
DB12075A4	12 x 75		75	25mm	50mm	50	- +
DB12099A4	12 x 99		99	47mm	50mm	25	- +
