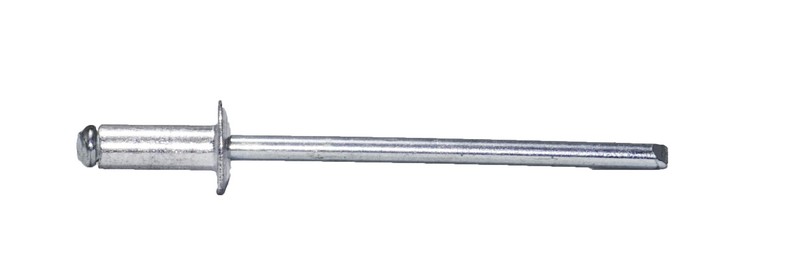

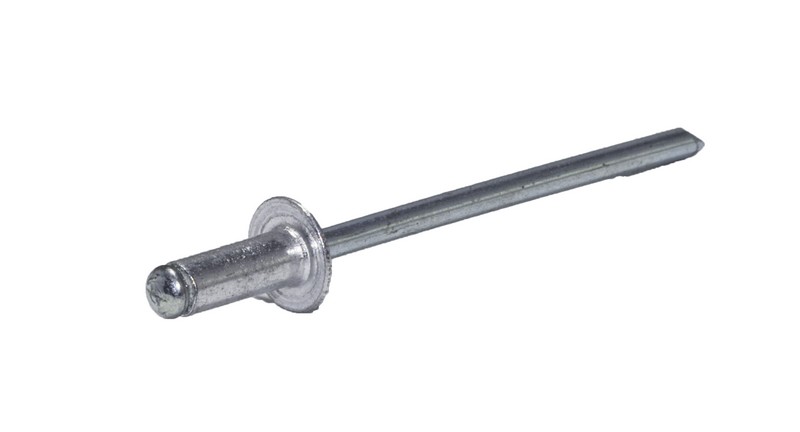

Dome Head - Aluminium (5052) / Steel

Part No.	Diam. Metric	Diam. Imperial	Max. Grip	Rivet Length	Box Qty.	Quantity
AS4-01	3.2mm	1/8	1.6mm	4.8mm	1,000	- +
AS4-02			3.2mm	6.4mm	1,000	- +
AS4-03			4.8mm	8.0mm	1,000	- +
AS4-04			6.4mm	9.6mm	1,000	- +
AS4-05			8.0mm	11.1mm	1,000	- +
AS4-06			9.6mm	12.7mm	1,000	- +
AS4-08			12.7mm	16.1mm	1,000	- +
AS4-10			16.0mm	19.1mm	1,000	- +
AS4-12			19.0mm	22.2mm	1,000	- +
AS5-02	4.0mm	5/32	3.2mm	7.1mm	1,000	- +
AS5-03			4.8mm	8.6mm	1,000	- +
AS5-04			6.4mm	10.2mm	1,000	- +
AS5-06			9.6mm	13.4mm	500	- +
AS5-08			12.7mm	16.5mm	500	- +
AS5-10			16.0mm	19.5mm	500	- +
AS6-02	4.8mm	3/16	3.2mm	8.0mm	500	- +
AS6-03			4.8mm	9.6mm	500	- +
AS6-04			6.4mm	11.0mm	500	- +
AS6-06			9.6mm	14.5mm	500	- +
AS6-08			12.7mm	17.7mm	500	- +
AS6-10			16.0mm	21.0mm	500	- +
AS6-12			19.0mm	24.1mm	500	- +
AS6-14			22.0mm	27.0mm	500	- +
AS6-16			25.0mm	30.0mm	250	- +
AS8-04	6.5mm	1/4	6.4mm	12.7mm	250	- +
AS8-06			9.6mm	15.9mm	250	- +
